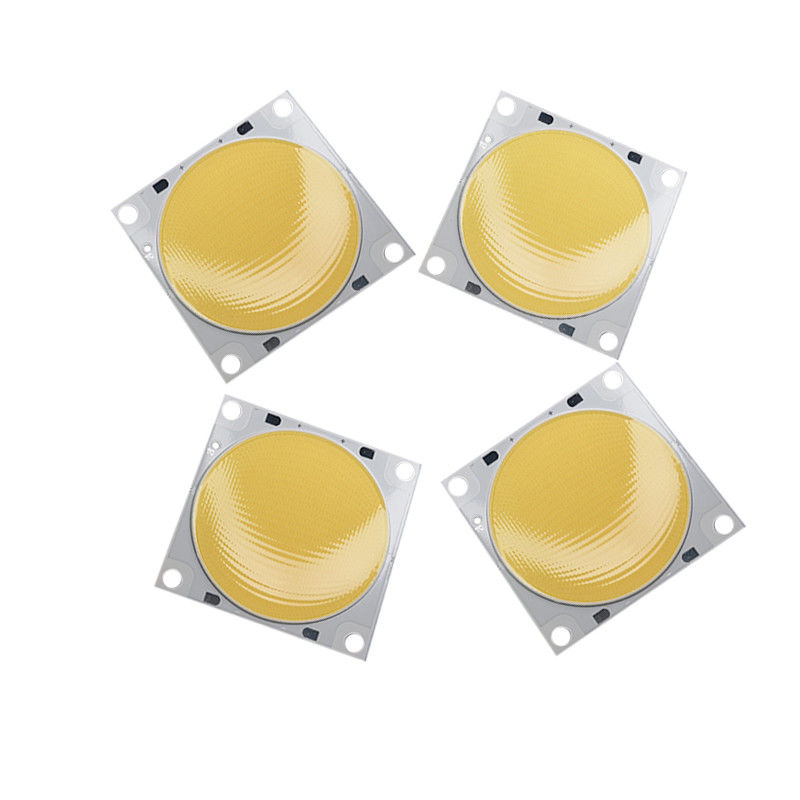

Name: Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: JC-5047
Price: 16.50 USD
Availability: InStock

Chi tiết sản phẩm

Place of Origin: China

Hàng hiệu: HuanYu Dream

Chứng nhận: RoHS

Model Number: JC-5047

Điều khoản thanh toán và vận chuyển

Minimum Order Quantity: 1piece

Giá bán: Negotiated

Packaging Details: 4 pcs/Tray

Delivery Time: 10-15 Work Days

Payment Terms: T/T, Paypal,Ali Pay

Supply Ability: 30000 units per day

Nhận được giá tốt nhất

Chi tiết sản phẩm

Mô tả sản phẩm

Làm nổi bật:
                                                                                                                                                                                                                                                                                                                cri95+ cob power led, 500w cob power led, 5047 high power cob


Name:	5047 COB Led Chips	Power:	500 W
Series:	24S48P	Current:	7000mA
Voltage:	70V-74V	CRI:	Above 95
CCT:	2700-7000K	Size:	50*50（mm）

Name:	5047 COB Led Chips
Power:	500 W
Series:	24S48P
Current:	7000mA
Voltage:	70V-74V
CRI:	Above 95
CCT:	2700-7000K
Size:	50*50（mm）

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k

High CRI CRI95+ 500W 5047 COB Led Chips F3000K F4000K F5600K F6500K

* Dimension 50.0 mm×50.0 mm×2.4 mm

* Wide viewing angle : 120°

* CRI: 95+

* RoHS compliant

* Sulphation corrosion resistance

* Manual Soldering

* The White LED which was fabricated using a blue chip and phosphor

500W 5047 COB Led Chips

Model No.	HY05047
Power	500W
Current	6800mA
Efficiency	100-110lm/w (RA>95) 130-140LM/W(RA>80)
Color Temp	2700-6000K
Voltage	72-76V
Size	50*50mm
Light Area	47mm
Series&Parallel	24S48P
SDCM	≤3
CRI	Ra 95-98
Chip Brand	Bridgelux/ Sanan
Substrate material	Ceramics
Lifespan	50000h
Warranty	3years

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 0

Package Dimension

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 1

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 2

Optica Characteristic curve

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 3

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 4

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 5

500W 5047 COB Led Chips Applications

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 6

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 7

Cri95+ 500w 5047 Cob Power Led F3000k F4000k F5600k F6500k 9

FAQ

Q1: Are you a factory or a trade company?
A1: We are the manufacturer specialize in smd and cob led chips since 2013.

Q2: Can I get some samples for tests?

A2: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.

Q3: What about the lead time?

A3: Generally, it will take 3-5 working days for sample and 7-25 working days for mass order.

Q4: How many years of warranty of products you offer? And how do you deal with the LED working issues?

A4: We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.

Q5: How to process the order?

A5: 1. Let us know the requirements(size, color, power and quantity) of the products you need.

2. We will send you the quotation and check the stock.

3. We will send you proformer invoice after you confirm the samples.

4. You make the payment after checking the details.

5. We will arrange the delivery and continue to provide you the best service.
